pF Capacitance Meter
Used in the following activities:
+1 with leads.

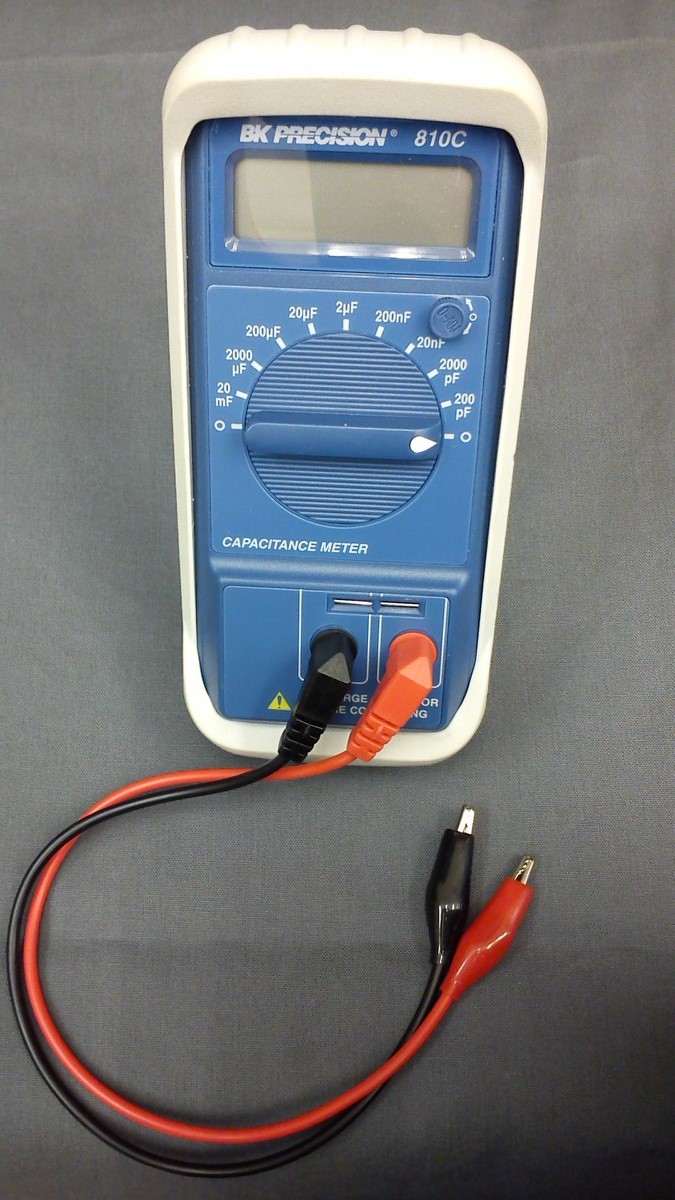

BK Precision Model 810C.
The meter has a knob to zero test lead capacitance.
Specifications:
| Range | (Best Resolution) | Accuracy |
|---|---|---|
| \(200 pF\) | \(0.1 pF\) | \(\pm (0.5\% rdg + 1dgt + 0.5pF)\) |
| \(2 nF\) | \(1 pF\) | \(\pm (0.5\% rdg + 1dgt)\) |
| \(20 nF\) | \(10 pF\) | \(\pm (0.5\% rdg + 1dgt)\) |
| \(200 nF\) | \(100 pF\) | \(\pm (0.5\% rdg + 1dgt)\) |
| \(2 \mu F\) | \(1 nF\) | \(\pm (0.5\% rdg + 1dgt)\) |
| \(20 \mu F\) | \(10 nF\) | \(\pm (0.5\% rdg + 1dgt)\) |
| \(200 \mu F\) | \(1 \mu F\) | \(\pm (0.5\% rdg + 1dgt)\) |
| \(2000 \mu F\) | \(1 \mu F\) | \(\pm (2\% rdg + 1dgt)\) |
| \(20 mF\) | \(10 \mu F\) | \(\pm (4\% rdg + 1dgt)\) |
| Power Source | 9V Battery (200hrs typ) |
|---|---|
| Operating Temperature | \(32^{\circ} to 104^{\circ} F\) \((0^{\circ} to 60^{\circ} C)\) |
| Storage Temperature | \(14^{\circ} to 140^{\circ} F\) \((-10^{\circ} to 60^{\circ} C)\) |
| Dimensions | \(6.75 \times 3.0 \times 2.25"\) \((171 \times 76 \times 57 mm) \) |
| Weight | \(200 g\) |
| Excitation Voltage | \(< 3.5 V Max\) |
| Zero Adjustment Range | \(+20 pF\) |
| Protection | Input protected by 0.1A / 250V Fast acting fuse |
| Measurement Rate | 2 per second, nominal |
