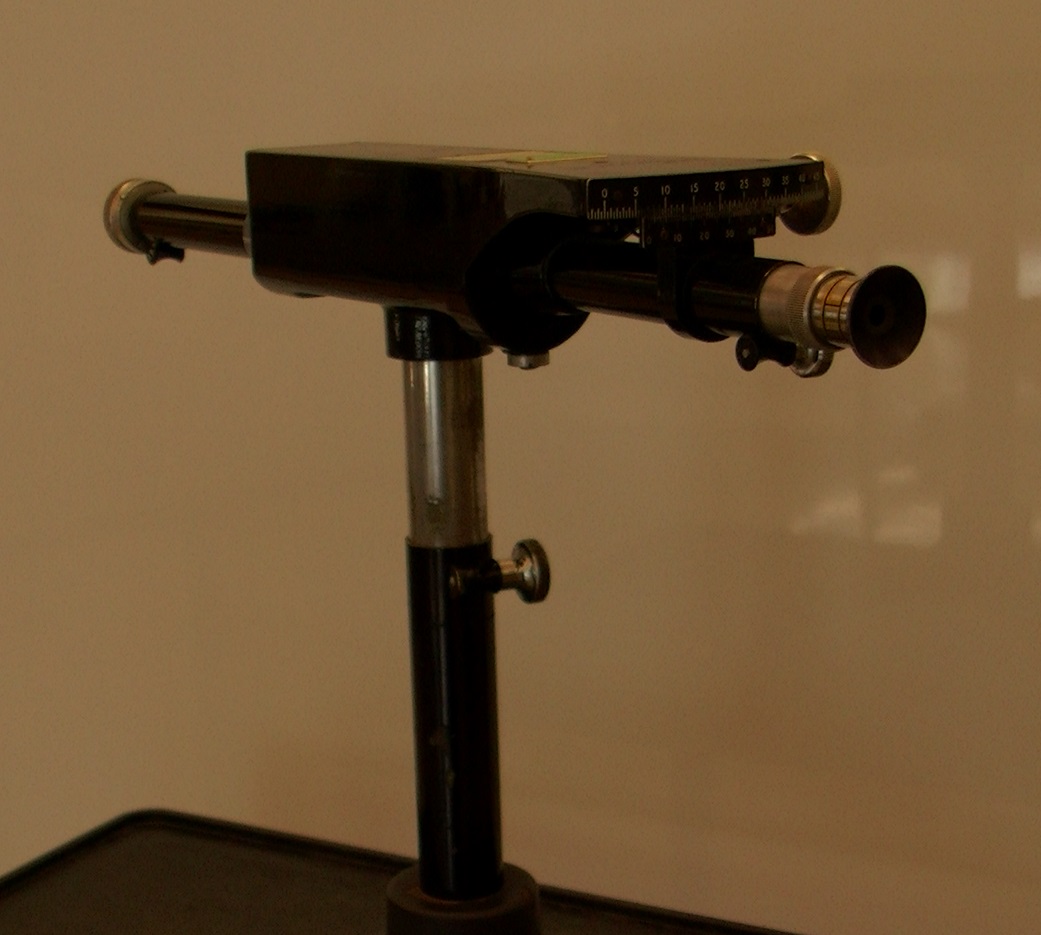

Mechanical Spectrometer

No fancy electronics; just prisms and a vernier scale.

Count: 1

Hardware ID: 00000

Location:

MP126

Used in the following activities:

Heavy duty spectrometer designed to be rugged, at the expense of precision and specs. Useful for undergrad demos; the students will probably break before this apparatus does.

Specs:

Manufacturer: Canadian Arsenals Ltd.

Model Type: JS

Theoretical Resolution: 0.1nm

Practical Resolution: 0.6nm (I could just barely resolve the Sodium Doublet - Sean)

Internal Workings: Prism + Vernier Scale

Notes:

Each spectrometer has a central wavelength written on them, for fitting a calibration to the Vernier Scale. See:

http://faraday.physics.utoronto.ca/IYearLab/Intros/Spectra/Spectra.html

For Calibration Procedure and fit (by David Harrison).
