A.C. Current Produced by a Moving Coil in a Permanent Magnet

Type of activity: demo
Activity code:  M-005a

Courses

Description:

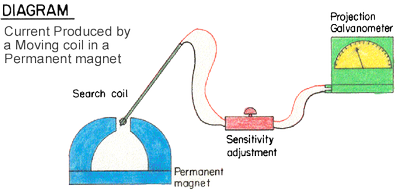

1. Connect as shown.
2. Use overhead projector and mask.
3. Adjust the amount of deflection using the sensitivity box.

Method:
1. Rotate search coil in magnetic field.
2. Observe meter deflection on overhead.

Apparatus

Magnet (Large)
Magnet (Large)
Search Coil
Sensitivity Box
Galvanometer (projection)
Overhead Projector
Overhead Projector
Overhead Mask
