Angular Momentum Chair

video embedded
Type of activity: demo
Activity code:  Me-001b


Description:

Beware of flying bodies from the chair!

1. Adjust the level of chair
2. Have a student sit on rotating chair
3. Give the person two masses, one in each hand
4. Gently rotate the chair
5. Observe the affects of moving the weights towards the center and then apart
6. Have the student hold a spinning bicycle wheel with his/her arms extended
7. Observe the direction of precession as the rotating wheel is flipped

IMPORTANT: Steady the student when they get off the chair.  They might be very dizzy.

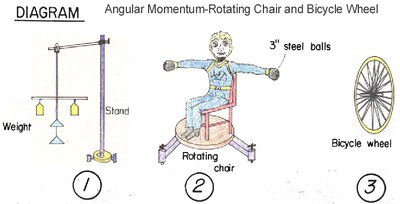

Historic Diagram:



Video:

source: https://play.library.utoronto.ca/d16e062fd7386bc9245e3804cb0d3fbe

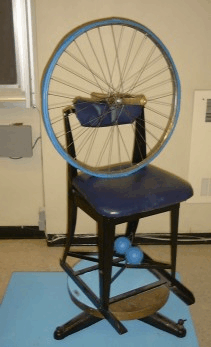

Apparatus

Bicycle Wheel (heavy)
Rotating Chair
Mass (Disc)
