Black Body Radiation (Grating)

video embedded
Type of activity: demo
Activity code:  H-001a

Courses

Description: Spectra of blackbody radiation

1. Create a black background with a piece of black cloth and one or two retort stands.
2. Place the incandescent filament lamp in front.
3. Connect the lamp with the variac.
4. Mount the diffraction grating with a clamp and retort stand, a few inches in front of the lamp.
5. Turn on the variac and increase the voltage slowly.
6. Observe the blackbody radiation spectrum.

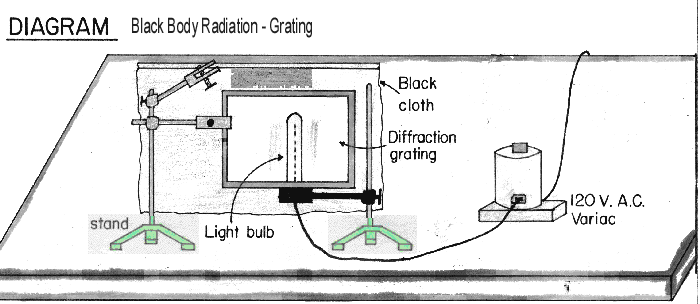

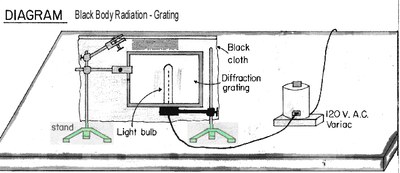

Historic Diagram:



Video:


source: https://play.library.utoronto.ca/ef367670847fbcd991fb68461150866c

Apparatus

Variac
Variac
Incandescent Lamp (Filament)
Incandescent Lamp (Filament)
Black Cloth
Black Cloth
Retort Stand
Retort Stand
Clamp (Wooden)
Clamp (Wooden)
Diffraction Grating film
Diffraction Grating film
