Force Between Two Current Carrying Coils

Type of activity: demo
Activity code:  M-008b

Description:

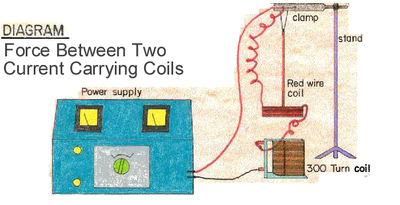

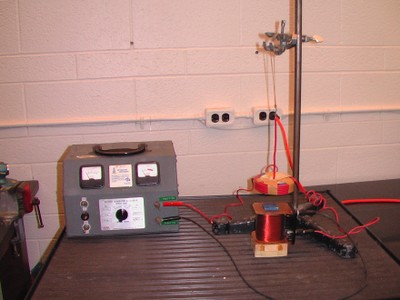

1. Connect as shown.
2. Turn power supply to 12 volts - 10 amps.

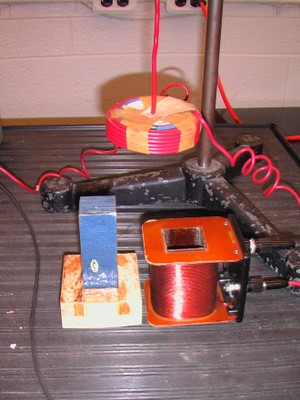

3. Adjust upper coil so it just touches lower coil.
Note: Use the wooden slot platform to position the coil so that the top of the coil is near the top of the solid core.

Method:
1. Turn on power supply.
2. Observe attractive force between the current carrying coils.
3. Reverse input lead on bottom coil.
4. Observe the repulsive force between them.

SiteSite

Apparatus

Retort Stand
Retort Stand
Clamp (Bosshead)
Clamp (Bosshead)
Power Supply (6-12V)
Power Supply (6-12V)
Red Wire Coil
Iron Core
Coil (300 turn)
