Stirling Engine

Type of activity: demo

Activity code: H-009

Description:

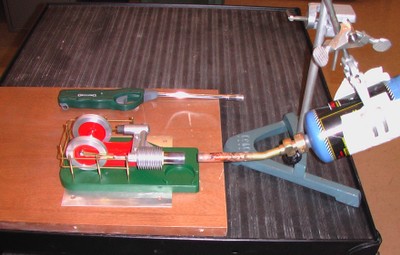

Place the engine on some thermal insulation, such as a wooden board. 1) Clamp the propane onto a stand securely, as shown on photo. 2) Light the propane canister, adjust the flame. 3) Adjust the position of the engine so that the flame heats up the cylinder. 4) Observe the wheels turning once the system is hot! Note: engine moves due to vibration when the wheels are turning. It may be a good idea to clamp it down also.

Apparatus
