Surface Tension in Capillary Tubes

Type of activity: demo
Activity code:  Me-007b


Description:

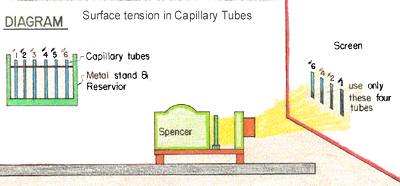

1. Arrange as shown.
2. Use only 4 tubes #6, #4, #2, #1 for best separation in water / ink levels.
3. Pre-soak tubes in water / ink to insure that the inner tube is wetted.
4. For projection in a large class (room 102) use an ink solution only.

Method:
1. Turn on projector.
2. Observe each water / ink level corresponding to the tube's diameter (#6 largest diameter and lowest level).

Apparatus

Capillary Tubes
Metal Stand
Spencer Projector
