Doppler Effect

Type of activity: demo
Activity code:  W-009


Description:

A.

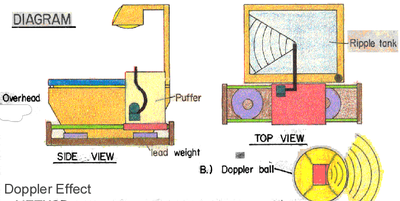

1. Connect as shown
2. Overhead projector should be level
3. Fill ripple tank with water so it covers the plastic beaches
4. Adjust puffer tube to 1/4 inch height above surface
5. Swing puffer motor onto drive wheel
6. Focus overhead onto water surface

Method:
1. Turn on overhead and puffer motor
2. Move the puffer from left to right
3. Slowly increase speed of puffer each time
4. Observe the formation of a shock wave

B.
1. Check the 9V D.C. battery

Method:
1. Turn on buzzer using the latch contact

Apparatus

Overhead Projector
Doppler Ball (with Sonalert)
Doppler Puffer
Weights (Lead)
Metal Support Track
Acrylic Tank (shallow)
