Capacitor Circuit (using supercapacitors)
Description:
|

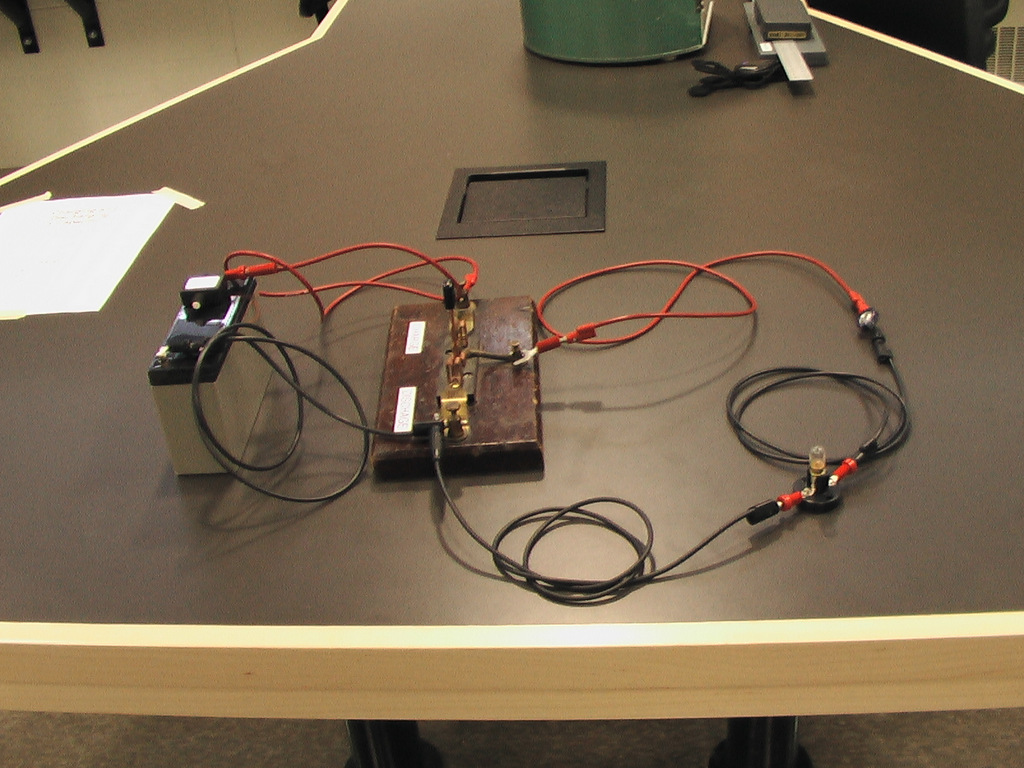

Connect a 6V1W bulb and battery to the supercapacitors as shown in the diagram below and observe the charge/discharge behaviour of the capacitors.
The brightness of the light bulb measures the current flowing through the circuit. |
Apparatus
Supercapacitor (1.0F)
Supercapacitor (0.47F)
Switch (2-way SPST)
Patch Cable (Banana)
Battery (6V lead acid)
