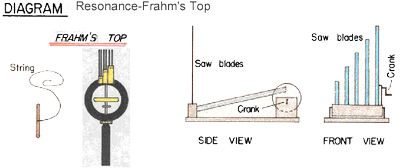

Resonance (Frahm's Top and Vibrating Saw Blades)

Type of activity: demo
Activity code:  Me-009b

Description:

Frahm's top:
1. Use overhead projector with focus set high.
2. Check string for wear and wind up evenly.
3. Hold top over the stage of projector and focus on reeds.
4. Use a slow steady pull to spin top.
5. Show that the top is not a gyro by holding it against a hard surface.
6. Vibrations will be heard.
7. Focus projector on individual reeds as top slows down.

For vibrating saw blades:
1. Set up vibrating saw blade apparatus.
2. Crank.

Apparatus

Frahm's Top (With String)
Frahm's Top (With String)
Hacksaw (with Crank)
Hacksaw (with Crank)
Overhead Projector
Overhead Projector
