White Light Diffraction

video embedded
Type of activity: demo
Activity code:  L-005bii

Courses

Description:

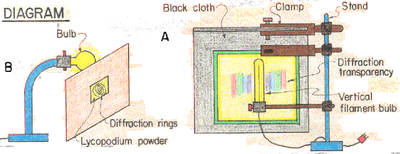

A. Connect as shown.
B. The lycopodium powder should be sprinkled lightly and evenly over the clear transparent tape.

Method:
A.
1. Turn on light bulb.
2. Observe rainbow spectrum through transmission grating.

B.
1. Turn on light source.
2. Standing back approx. 5 feet, observe the diffraction rings by looking directly through the lycopodium powder.



Video:


source: https://play.library.utoronto.ca/ef367670847fbcd991fb68461150866c

Apparatus

Incandescent Lamp (Filament)
Incandescent Lamp (Filament)
Light Bulb (15W)
Lycopodium Powder
Black Cloth
Black Cloth
Retort Stand
Retort Stand
Clamp (Bosshead)
Clamp (Bosshead)
Diffraction Grating film
Diffraction Grating film
